Everything You Ever Wanted to Know About Hubs But Were Afraid to Ask

Over the years, Willys used many different types of locking hubs for the front axle.  There were also many manufacturers of aftermarket hubs that were installed.

everything_you_ever_wanted_to_kn/HubsAndToolT.jpg (2041 bytes)
The Cutlass Power-Lock Hub The Dualmatic Hub

Here are a series of articles on the hubs by Rick Stivers and Rob Wolfe



Cutlass Power-Lock-Hub

THIS WEB PAGE WAS A FAMILY PROJECT

 Text by: Rick Stivers

Photos by: Stephanie Stivers age 12

This is the Cutlass Power-Lock-Hub (PLH). Cutlass Tool and Mfg. Co Lyons Ill manufactured them. I have been unable to locate this company so it seems that they have either gone out of business or merged with some other company. If you locate this company, please contact me so that I can update this page.

everything_you_ever_wanted_to_kn/HubsAndToolT.jpg (2041 bytes)   The PLH is locked and unlocked using the angled tool in the picture known a control key. Each end of the tool is rounded to fit into the curved slots in the top of each locking pin on the hub. The locking pins have arrows to determine if they are locked or unlocked. When the arrows point out the hub is unlocked, when they point in it is locked. The hubs should be locked before engaging the four-wheel drive so that the axle shaft can be turned internally. Failure to lock the hubs prior to engaging the four-wheel drive usually causes the hub to bind and prevents locking. The Hub has these instructions printed on the face:

" IMPORTANT

SHIFT TRANSFER CASE TO 2 WHEEL DRIVE

& TRANSMISSION TO NEUTRAL

DIRECTION OF ARROWS

3 2 WHEEL DRIVE 4

4 4 WHEEL DRIVE 3 "

everything_you_ever_wanted_to_kn/CamLocksInstalledT.jpg (2288 bytes)   With the hub's cover removed it is easy to see the locking pins in the locked position.



everything_you_ever_wanted_to_kn/CamLockRemovedT.jpg (2185 bytes)   Note the cutout in the locking pin. When the pin is locked the cutout is rotated to the outside edge of the hub and then the drive gear can free wheel inside the hub. The locking pin assembly consists of the pin, spring, seal (O-ring), and washer. The spring preloades the locking pin down into a locked position (More on this later). The O-ring seals the cam-lock and the washer prevents the spring from cutting into the soft brass face on the locking pin when the pin is rotated.



everything_you_ever_wanted_to_kn/UnlockedCamCloseT.jpg (2595 bytes)   A close-up of the locking pin in the unlocked position allows you to observe how the drive gear can rotate through the unlocked pin.



everything_you_ever_wanted_to_kn/LockedCamCloseT.jpg (2576 bytes)   The same pin has been rotated into the locked position. In this position the drive gear is locked in place and this transfers power to the wheel. Failure to lock both cams on a hub could cause severe damage to the hub by transferring all of the power to one side of the hub.



 everything_you_ever_wanted_to_kn/BottomCompleteT.jpg (2343 bytes)   In this bottom view of the PLH you can see the nylon bearing that is the Achilles' Heel of the hub. The drive gear rotates on this bearing. Apparently the bearing worked well and didn't need to be stronger when new. However after 30 years or so, they are starting to crack.



everything_you_ever_wanted_to_kn/PlasticRingInstalledT.jpg (2345 bytes)   Here is the bearing with the drive gear removed.



 everything_you_ever_wanted_to_kn/PlasticRingRemovedT.jpg (1757 bytes)   Here is the bearing removed from the hub. It looks pretty good at first glance.



 everything_you_ever_wanted_to_kn/BrokenRingT.jpg (1863 bytes)   But in this view its condition takes on a different light. The straight cut is factory original but the one in the back is not. Even with the bearing cracked in half, the hub still works fine.



everything_you_ever_wanted_to_kn/WarnHubSideT.jpg (2923 bytes)everything_you_ever_wanted_to_kn/WarnHubStraightT.jpg (3056 bytes)   The old WARN Hubs, that I used to replace my Cutlass Hubs, have a set of caged needle bearings in the place of the nylon bearing. This gives you a pretty good idea of the difference in quality. If this bearing had been made of brass or bronze I think it would have been a lot better. I had no idea where to find new bearing for these hubs, so I changed to the WARN Hubs. I could have bought a new set of hubs but new parts on an old truck look funny to me. I bought these WARNs are off of a 1949 Willys Pickup that was on its way to the junkyard.



everything_you_ever_wanted_to_kn/CutlassPartsAssembly2.jpg (6655 bytes)   Here is a photo of the individual parts of the hub. If the plastic ring is still usable like mine then you can just replace the o-rings and make a set of gaskets to seal it up. Note the complex design of the homemade gasket. It has to be cut his way to prevent the center hub from catching on the gasket. I learned this the hard way. My bottom gasket did not survive the removal so it isn't in the picture.

A. Cover C. Drive Gear E. Lock Pins G. Seals I. Retaining Ring
B. Housing D. Nylon Bearing F. Springs H. Flat Washers J. Top Gasket

everything_you_ever_wanted_to_kn/Lockingtools.jpg (1591 bytes)   I decided to make a new set of control keys. I used a piece of 3/4" bar steel. They were cut to about 14" long and then the last 4" were bent over at a 90-degree angle. I put a quarter on the end and drew a circle on the bar stock. The circle was used to grind the end into a smooth curve. I chose a quarter because it fit the curve in the locking cam perfectly.

REMOVAL AND DISASSEMBLY PROCEDURES

The first step in removing the Cutlass Hub is to remove the six bolts holding the Cover in place.

Remove the cover. The brass Locking Pins may or may not come off with the cover, it doesn't matter.

Using snap-ring pliers, remove the snap-ring from the axle stub. Now the rest of the hub will come off.

If the Locking Pins stayed inside the hub, you can remove them now.

You may need to rotate the Drive Gear to release the Locking Pins.

Remove the Locking Pin Springs and Washers.

The Seals should be removed and replaced. The seals are nothing more than O-rings that can be purchased in most parts houses.

Turn the Housing upside down and remove the Retaining Ring from the drive gear.

Remove the Drive Gear from the front and the Nylon Bushing from the rear.

INSPECTION PROCEDURES

Remove all grease and dirt from the parts and inspect for damage.

1. Inspect the cover and housing for cracks and chips.

2. Inspect the Drive Gear and Locking Pins for excessive wear. The Locking Pins have a cam lobe on the bottom that if worn away will prevent the Locking Pins from locking in place. Fit the Pins into the Housing and ensure that they turn smoothly. The outside end of the Locking Pins has a curved slot cut into it. If it needs to be repaired, you can do it with a Dremal tool.

3. Inspect the Locking Pin Springs to ensure the are not broken and that they will not bind on the Pins.

4. Inspect the Nylon Bearing for cracks. If it is only broken in half it can still be used but if it is crumbled, some type of replacement will be needed. I am trying to have some brass or bronze bushings made for these hubs. If I am successful, I will post it here.

5. The Seals should be replaced to prevent grease from escaping the hub and to keep moisture out.

INSTALLATION PROCEDURES

New gaskets are not available so homemade gaskets will need to be made. The bottom gasket is fairly easy to make because it doesn't have any compound curves. The top gasket must be cut to allow the center hub to move freely inside the hub housing, without hitting on the gasket.

Slide the Nylon Bearing inside the Housing from the backside.

Slide the Drive Gear into the Housing from the front side and install the Drive Gear Retaining Ring.

Slide the Locking Pin Washers onto the Pins then slide on the Locking Pin Springs.

Install the Locking Pins into the Housing with the openings toward the middle.

Rotate the Drive Gear until it engages the Locking Pins. This will hold them in place until the cover plate can be installed.

Fit the bottom gasket onto the Housing and the top gasket onto the Cover.

Slide the Housing over the axle stub (No force should be needed) and install the snap ring.

Install the Cover and six bolts. Cross torque the bolts to prevent the hub from binding.

CUTLASS HUB ORIGINAL BOX



everything_you_ever_wanted_to_kn/powerlockhub2.jpg (6279 bytes)  Now someone has even provided a picture of the original Cutlass Hub box label. This is great. For a larger, more detailed picture you can click on the picture.

everything_you_ever_wanted_to_kn/IPBCutlassT.jpg (4809 bytes)  As if that wasn't enough Jeff Bonno was kind enough to supply me with this wonderful scan of an illustrated parts breakdown of this hub and another Cutlass Hub.  For a nice viewable picture click on the thumbnail.  For a really large printable file, you can click here.

everything_you_ever_wanted_to_kn/IPBOCutlassT.jpg (4848 bytes)  Here is the other Cutlass Hub.

Dualmatic Hubs

By Rob Wolfe

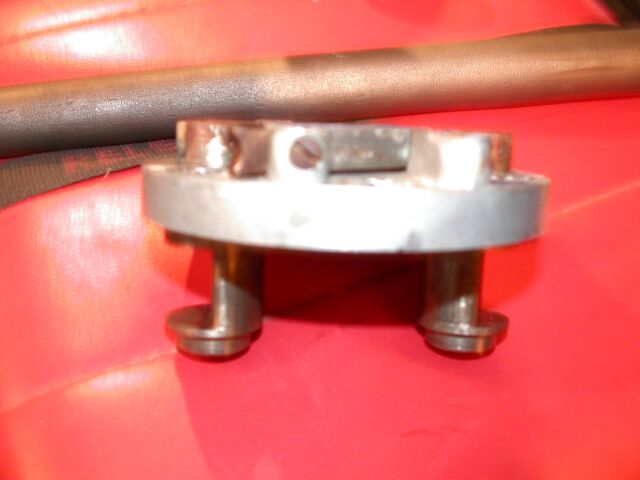

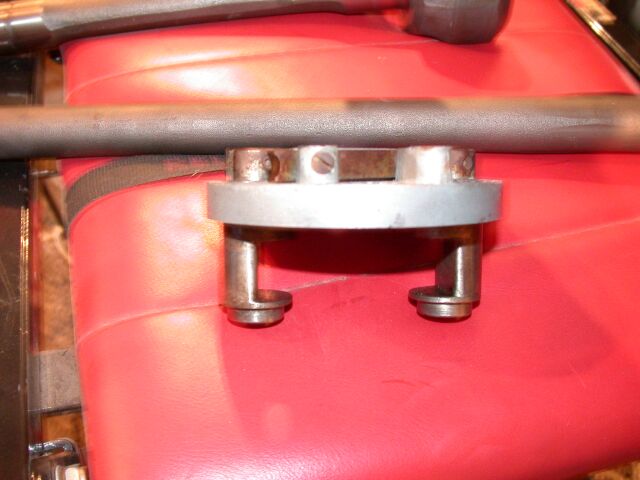

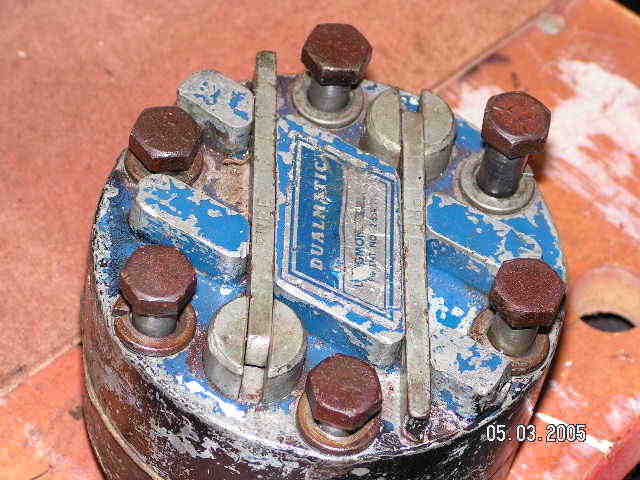

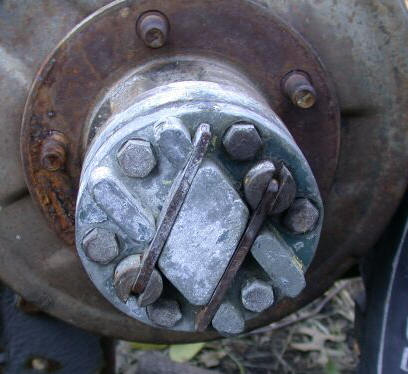

These hubs use 2 levers to lock and unlock the front axels.  If you look at the lever on the edge it will

have a locked and free stamped on opposite sides of the lever.

To operate the hubs you just pull up on the lever and turn it 180 degrees and lock it back down.

This is the inside section of the hub and it butts up the the wheel hub.

There should be a gasket in between them.

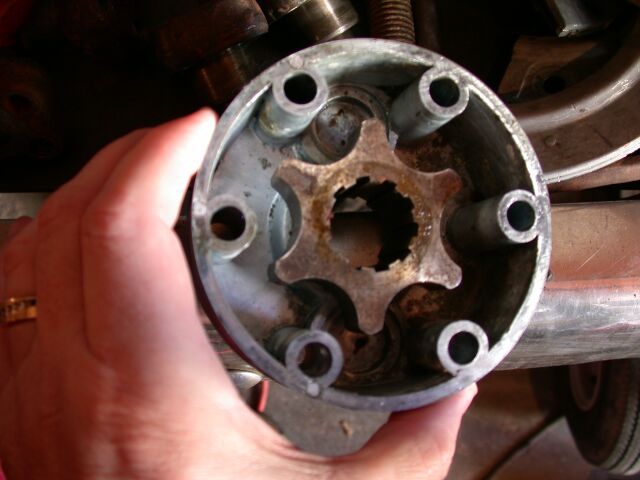

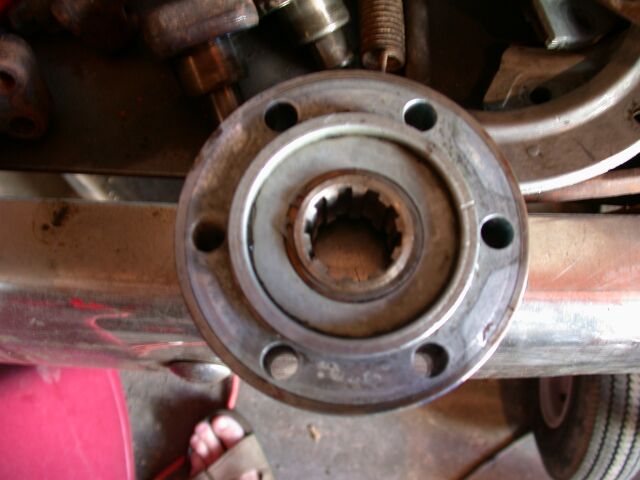

This shows the inside of the hub.

The drive axel goes through the star gear.

If The star gear is free to spin, no force will be transferred to the wheel/tire.

If the star gear is locked into position, then the force from the axel is applied to the wheel/tire.

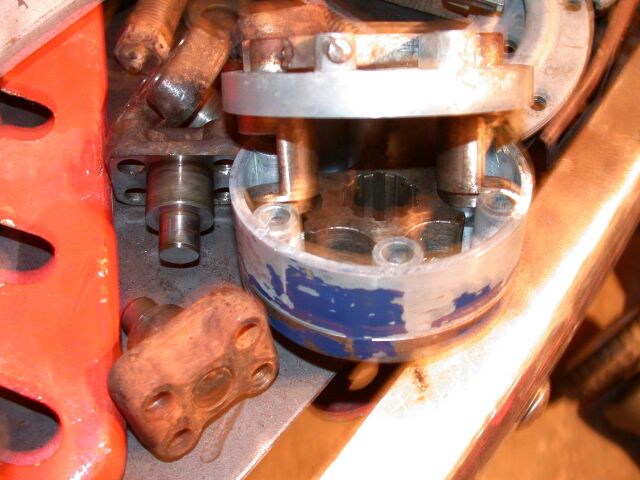

This shows the hub in the free position.  The star gear is "free" to spin in the hub.

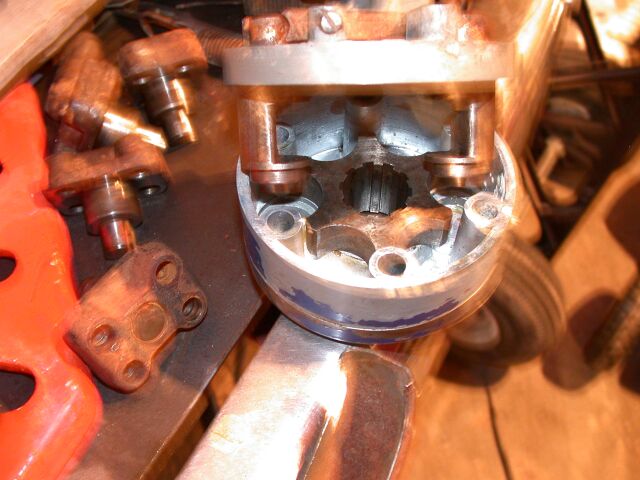

This shows the hub in the locked position.  The star gear is now captured by the hub rollers and

power will be transferred to the wheel/tire.

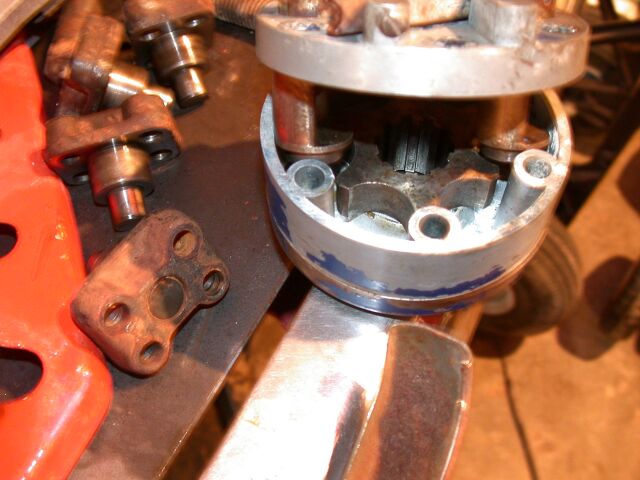

Here one side of the hub is locked and the other is free.

This will put a lot of pressure on the locked side which could break the hub.

I have herd of people painting the locked edges red and the free ones green to make it easier

to make it easier to see and thus prevent.

Some times the levers will be very hard to turn as they may be sitting in to far.

To fix that you just put a gasket between the 2 hub pieces.

The bolts holding the hub on also have a tendency to come loose.  Use LockTite on them to keep that from happening.

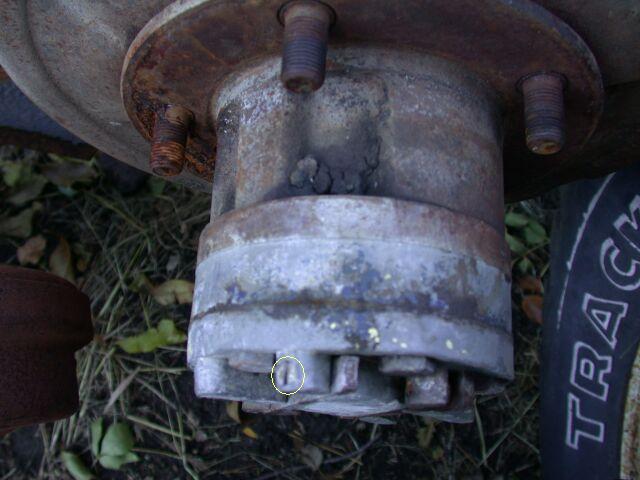

Each lever has a set screw (circled) that is used to keep the levers from coming loose while driving.

You can tighten it up a little so that the lever snaps in place.  There is a hole in the lever for the screw to snap into.
