CJ3A Operation and Care
Manual -- Proper Maintenance
(part 6 -- Brakes)
BRAKES
The foot or service brakes are hydraulically actuated in all four wheels. The
brakes are of the two-shoe, double anchor type and have chrome-nickel alloy iron
drums. The hand brake is mechanically operated through a cable and conduit to
an internal expanding type brake mounted on the propeller shaft at the rear of
the transfer case.
FOOT BRAKES
In operation, pressure is applied to the hydraulic liquid in the master cylinder
through the foot pedal, forcing the liquid through the lines and into the wheel
cylinders. The pressure forces the pistons in each wheel outward, expanding the
brake shoes against the drums. As the pedal is further depressed, higher
pressure is built up within the hydraulic system, causing the brake shoes to
exert greater force against the brake drums. As the brake pedal is released the
brake shoe return springs pull the shoes together forcing the fluid out of the
cylinders and back into the lines toward the master cylinder.
The master cylinder may be reached by removing the five screws in the
inspection cover on the toe board below the steering column. Keep the master
cylinder reservoir full at all times. Use only genuine hydraulic brake fluid.
Check the level each 1000 miles and use care, when removing the filler cap, that
no dirt enters the reservoir. The fluid capacity is approximately ¾ pts.
The hydraulic brake system must be bled whenever a fluid line is disconnected
or air enters the system due to low fluid level in the master cylinder
reservoir. A leak in the system may be indicated by a “spongy” pedal. Air
trapped in the system is compressible and does not permit pressure, applied to
the brake pedal, to be transmitted solidly to the brakes. Should bleeding be
required, consult your Willys-Overland Dealer.
BRAKE SHOE ADJUSTMENT – MINOR
When the brake lining becomes worn the effective brake pedal travel is reduced.
The effective travel may be restored by adjusting the brake shoes.
First make sure that there is ½” pedal travel, without moving the master
cylinder piston, which is necessary to prevent the brakes from dragging due to
expansion of the hydraulic liquid.
Jack up the wheels to clear the floor. Adjustment is made by relocating the

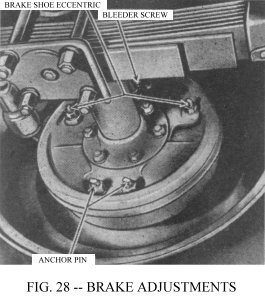

brake shoe eccentrics Fig. 28. Loosen the lock nut for the forward brake shoe
and hold the nut while turning the eccentric toward the front of the car, with
another wrench, until the shoe strikes the drum. Turn the wheel with one hand
and release the eccentric until the wheel turns freely then hold the eccentric
and tighten the lock nut. To adjust the reverse or rear shoe, repeat this
operation except turn the eccentric toward the rear of the car. Do this on all
brakes and check the fluid level in the master cylinder reservoir.
As pressure is equal in all parts of the system, the brakes are
self-equalizing.
HAND BRAKE
To adjust the hand brake the sequence below should be followed:
Make sure that the brake handle on the instrument panel is fully released.
Give due attention to the cable and operating linkage to see that they do not
bind. Should the cable fail to slide freely into the conduit, remove and
lubricate it.
Rotate the brake drum until one pair of the three sets of holes are opposite
the two adjusting screw wheels in the brake. Use the edge of the holes as a
fulcrum for a suitable adjusting tool or a screw driver, rotate each notched
adjusting screw by moving the handle of the tool away from the centre of the
drive shaft until the shoes are snug in the drum. Back off seven notches
on each adjusting screw wheel to secure the correct running clearance between
the shoes and the drum.
Should either the foot or hand brakes require relining or other extensive
work, contact your Willys-Overland Dealer.

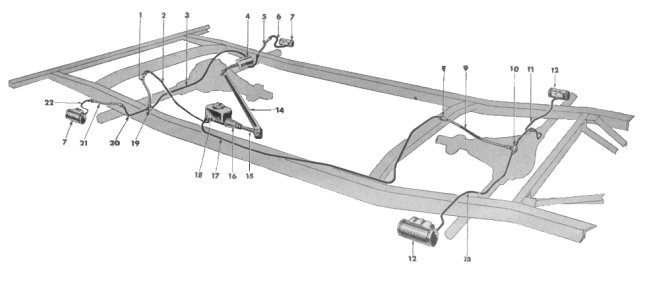

1. Brake Hose - Front Axle to Frame
2. Brake Tube - Master Cylinder to Front Hose
3. Brake Tube - Tee to Front Brake Hose, Right
4. Brake Pedal
5. Brake Hose - Front Axle
6. Brake Tube - Wheel Cylinder to
Hose
7. Wheel Brake Cylinder - Front
8. Brake Hose Spring Lock Clip
9. Brake Hose Assembly
10. Rear Brake Tee
11. Brake Tube - Rear Axle Tee to
Right Rear Axle |
12. Wheel Brake Cylinder - Rear
13. Brake Tube - Rear Axle Tee to
Left Rear Brake
14. Brake Pedal Shaft
15. Master Cylinder Eye Bolt
16. Master Cylinder Boot
17. Brake Tube - Master Cylinder to Rear Hose
18. Brake Master Cylinder
19. Rear Axle Tee
20. Brake Tube - Tee to Left Front
Brake Hose
21. Brake Hose - Front Axle
22. Brake Tube - Wheel Cylinder to Hose |
