Engine timing marks... (Read 6626 times)

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Engine timing marks... 07/03/13 at 19:02:28	Print Post

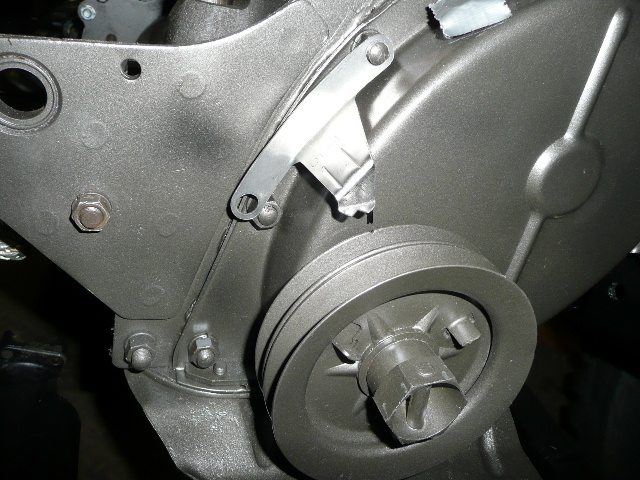

	I've read a number of comments about how difficult it is to see the flywheel timing marks... This front pulley already had a notch cut in it, so when I saw these on ebay I just had to have one...It's really for an M-38...but it seems like a reasonable add-on...and will allow for timing with a timing light...
	« Last Edit: 07/03/13 at 19:03:13 by 1955CJ-5 »
	P1050967.JPG ( 135 KB \| 108 Downloads ) P1050968.JPG ( 142 KB \| 114 Downloads ) 1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

Bob W Flatfender Master Owner Member 2012 2016 Sponsor Member Offline Posts: 2159 Location: Monticello, NY Joined: 10/19/10 Gender:	Re: Engine timing marks... Reply #1 - 07/04/13 at 01:24:13	Print Post
	The M-38 crank pulley was a different diameter than the Civilian Jeep so those pointers are kinda far away.

	Bob W
	WWW IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #2 - 07/04/13 at 01:32:22	Print Post
	I'll see when I get it mounted...I could bend the pointers down a little....I will set TDC via the flywheel at first, then use this as a relative adjustment..

	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

Bob W Flatfender Master Owner Member 2012 2016 Sponsor Member Offline Posts: 2159 Location: Monticello, NY Joined: 10/19/10 Gender:	Re: Engine timing marks... Reply #3 - 07/04/13 at 01:35:49	Print Post
	Sound like a good plan. It is nice to have the timing marks up front where they are easier to see.

	Bob W
	WWW IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #4 - 07/04/13 at 01:43:07	Print Post
	I just thought that I would have a better idea of how far I was advancing the timing and I could also see how the mechanical advance was or wasn't working.... I use an external 12 volt power source for my timing light and it works just fine on the 6v system.. But, we will see....

	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #5 - 07/04/13 at 20:19:50	Print Post

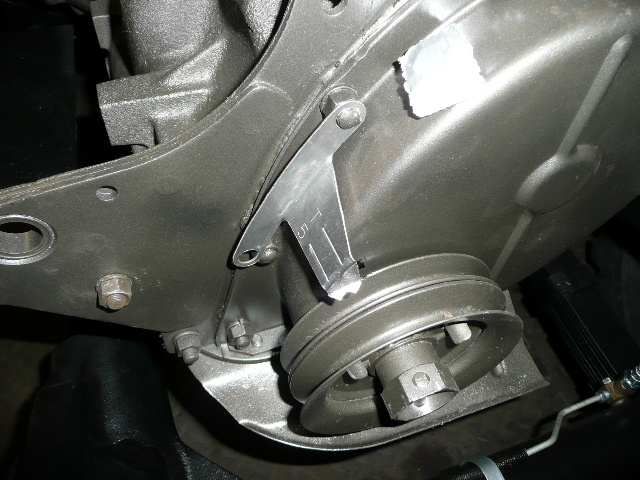

	Bob W wrote on 07/04/13 at 01:24:13: The M-38 crank pulley was a different diameter than the Civilian Jeep so those pointers are kinda far away. Bob is absolutely right of course....but without his input I would have thought that was just the way it was supposed to be... So I fixed it.. A strip of 18ga steel.. Some silver braze...
	« Last Edit: 07/04/13 at 20:21:53 by 1955CJ-5 »
	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #6 - 07/04/13 at 20:21:08	Print Post
	Double checked with the flywheel marks and good to go...

	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

athawk11 YaBB Administrator Owner Member 2012 2016 Sponsor Member 2015 Sponsor Member Offline 1949 CJ3A Posts: 2771 Location: Arvada, Colorado Joined: 01/26/11 Gender:	Re: Engine timing marks... Reply #7 - 02/14/14 at 23:25:36	Print Post
	Hi Randy, Can I ask a favor? Could you measure the distance between the two indicator arrows on your pointer? Tim

	2-1949 CJ3A 1-1946 CJ2A
	IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #8 - 02/15/14 at 00:05:30	Print Post
	I can do that...it might be tomorrow though...

	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

athawk11 YaBB Administrator Owner Member 2012 2016 Sponsor Member 2015 Sponsor Member Offline 1949 CJ3A Posts: 2771 Location: Arvada, Colorado Joined: 01/26/11 Gender:	Re: Engine timing marks... Reply #9 - 02/15/14 at 01:03:23	Print Post
	That's great. Thank you. Tim

	2-1949 CJ3A 1-1946 CJ2A
	IP Logged

1955CJ-5 Flatfender Master 2013 Sponsor Member 2016 Sponsor Member 2015 Sponsor Member Offline It wasn't always green.... Posts: 2338 Location: Boise, idaho Joined: 12/18/12 Gender:	Re: Engine timing marks... Reply #10 - 02/16/14 at 00:00:34	Print Post
	Hi Tim, The timing marks that are stamped into the steel bracket are 3/8" apart. The pointers are a little less than that.....it proved incredibly difficult to hold the flashlight, the tape measure, and then be able to see accurately....I had to look at it from underneath, the fan shroud blocks the view from the top....I hope that's enough info.......

	1955 CJ-5, A friend for 55 years....1951 CJ-3A, a new addition. 1929 Model A Ford Closed Cab Pickup...
	IP Logged

Gunslinger Flatfender Master Owner Member 2012 Offline Cj3a, M38A1, Posts: 942 Location: Minneapolis Joined: 02/06/11 Gender:	Re: Engine timing marks... Reply #11 - 02/16/14 at 00:47:58	Print Post
	I did the same thing, got the indicator at Midwest Military, it was pretty cheap and it does a nice job. However I did not have to modify mine, it just bolted into place and is within about 1/4 inch of the pulley. I'll get a pic out Sunday. Gun

	Climbs trees, hides in the long grass, hangs out with wet dogs...
